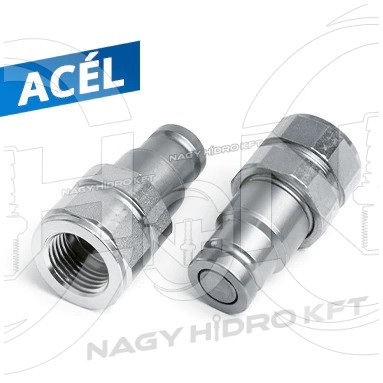

1" DN25 250BAR BSP BELSŐ MENETES HIDRAULIKA GYORSCSATLAKOZÓ DUGÓ, CSEPPENÉSMENETES KIVITEL PLT1

1" DN25 250BAR BSP BELSŐ MENETES HIDRAULIKA GYORSCSATLAKOZÓ DUGÓ, CSEPPENÉSMENETES KIVITEL PLT1

Article No.
PLT1D-BB2501
Share
Functions
Short description
  • Szabvány : ISO 16028 , DIN 3852-2 (DN06→DN30)
  • Zárás : lapon tömít
  • Csatlakozás : radiális golyók
  • Anyaga : acél
  • Kivitel : Zn-Fe (Cr III) és Zn-Ni
  • Menet : BSP belső menet
  • Szabványos tömítések : NBR és PU
  • Üzemi hőmérséklet : -25 °C +100 °C
Product properties
  • L1=99,8mm
  • L2=93,8mm
  • R1=1" BSP
  • HEX2=41mm
  • A=30mm
  • Átfolyás: DN25
  • Névleges áramlás: 100l/min
  • Opcionális tömítések: FKM, EPDM....
  • Üzemi nyomás max.: 250bar
  • Csatlakozás maradék nyomás alatt: nem megengedett




All data and information in our online catalogue are based on currently valid standards and the regulations from the employer's liability insurance association. Product safety can only be guaranteed when our assembly instructions are carefully observed. Our products are constantly subject to further development and technical changes are therefore possible.
